Copper Wire Mesh – Non-Magnetic And High Filtering Efficiency

Copper, also called pure copper, red copper, contains 99.8% copper. is non-magnetic. Copper wire mesh is made of flat or round copper wires. The wires are woven into sheets, rolls and other shapes. Copper wire mesh has excellent non-magnetic, shielding and filtering performance. It is widely used in pharmacy, chemical, laboratory and other fields for filtering, shielding and printing applications.

Specifications

Wire type:
- Flat wire.
- Round wire.
Weaving type:
- Plain weave.
- Twill weave.
- Plain dutch weave.
- Twill dutch weave.
Detailed specifications:
- Plain weave copper wire mesh specs.
- Twill weave copper wire mesh specs.
- Plain dutch weave copper wire mesh specs.
- Twill dutch weave copper wire mesh specs.

A piece of round wire copper wire mesh on the gray background.

CWM-01: Round wire copper wire mesh.

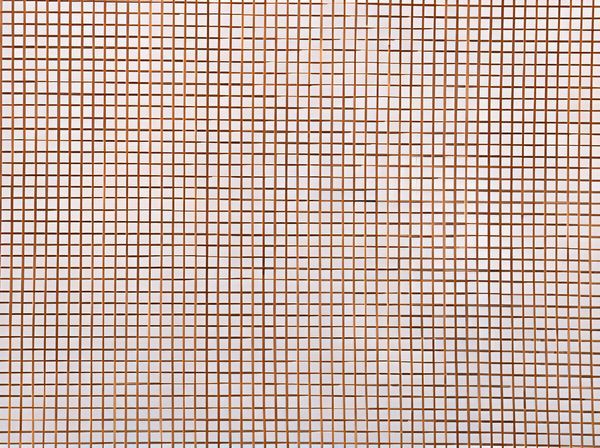

A piece of flat wire copper wire mesh on the gray background.

CWM-02: Flat wire copper wire mesh.

A drawing of plain weave copper wire mesh on the white background.

CWM-03: Plain weave copper wire mesh.

A drawing of twill weave copper wire mesh on the white background.

CWM-04: Twill weave copper wire mesh.

A drawing of plain dutch weave copper wire mesh on the white background.

CWM-05: Plain dutch weave copper wire mesh.

A drawing of twill dutch weave copper wire mesh on the white background.

CWM-06: Twill dutch weave copper wire mesh.

Table 1: Specifications of Plain Weave Copper Wire Mesh

Item	Mesh	Wire Diameter (mm)	Opening (mm)	Weight (kg/m²)
CPWS-01	1	2	23.4	2.0
CPWS-02	2	1.5	11.2	2.25
CPWS-03	3	1.0	7.466	1.5
CPWS-04	4	0.9	5.45	1.62
CPWS-05	5	0.8	4.28	1.6
CPWS-06	6	0.7	3.53	1.47
CPWS-07	7	0.6	3.02	1.26
CPWS-08	8	0.5	2.675	1.0
CPWS-09	9	0.5	2.322	1.125
CPWS-10	10	0.8	1.74	3.2
CPWS-11	11	0.7	1.609	2.695
CPWS-12	12	0.6	1.516	2.16
CPWS-13	13	0.5	1.453	1.625
CPWS-14	14	0.4	1.414	1.12
CPWS-15	15	0.4	1.293	1.2
CPWS-16	16	0.35	1.237	0.98
CPWS-17	17	0.35	1.144	1.041
CPWS-18	18	0.35	1.061	1.10
CPWS-19	19	0.35	0.986	1.16
CPWS-20	20	0.4	0.97	0.97
CPWS-21	21	0.3	0.909	0.945
CPWS-22	22	0.3	0.854	0.99
CPWS-23	23	0.25	0.854	0.718
CPWS-24	24	0.25	0.858	0.48
CPWS-25	25	0.2	0.816	0.50
CPWS-26	26	0.2	0.076	0.52
CPWS-27	27	0.2	0.740	0.54
CPWS-28	28	0.3	0.607	1.26
CPWS-29	29	0.3	0.575	1.30
CPWS-30	30	0.3	0.546	1.35
CPWS-31	40	0.25	0.385	1.25
CPWS-32	50	0.2	0.308	1.0
CPWS-33	60	0.15	0.273	0.675
CPWS-34	70	0.14	0.222	0.686
CPWS-35	80	0.12	0.197	0.576
CPWS-36	90	0.11	0.172	0.544
CPWS-37	100	0.10	0.154	0.50
CPWS-38	120	0.08	0.131	0.384
CPWS-39	150	0.07	0.099	0.367
CPWS-40	380	0.02	0.046	0.076
CPWS-41	400	0.018	0.0455	0.0648

Table 2: Specifications of Twill Weave Copper Wire Mesh

Items	Mesh	Wire Diameter (mm)	Mesh Aperture (mm)
CTWS-01	250 × 250	0.040	0.063
CTWS-02	300 × 300	0.040	0.044
CTWS-03	325 × 325	0.035	0.043
CTWS-04	350 × 350	0.030	0.042
CTWS-05	400 × 400	0.030	0.033
CTWS-06	450 × 450	0.028	0.028
CTWS-07	500 × 500	0.025	0.026

Table 3: Specifications of Copper Plain Dutch Wire Mesh

Item	Mesh Count	Particle Retention (inches)	Thickness (inches)	Weight (lbs./sq.ft.)
CPDS-01	10 × 52	0.0128	0.059	1.03
CPDS-02	12 × 64	0.0116	0.048	0.76
CPDS-03	14 × 88	0.0096	0.037	0.69
CPDS-04	24 × 110	0.0054	0.03	0.52
CPDS-05	30 × 150	0.0042	0.021	0.37
CPDS-06	40 × 200	0.0033	0.016	0.27
CPDS-07	30 × 150	0.0032	0.02	0.38
CPDS-08	50 × 250	0.0025	0.012	0.22

Table 4: Specifications of Copper Twill Dutch Wire Mesh

Item	Weft × Warp (inch)	Aperture Size (μm)	Available Area (%)	Thickness (mm)
CTDS-01	20 × 270	119	17.6	0.65
CTDS-02	20 × 200	118	12.1	0.915
CTDS-03	24 × 300	110	19.6	0.64
CTDS-04	20 × 150	101	7.5	1.16
CTDS-05	30 × 340	89	17.9	0.60
CTDS-06	30 × 270	77	11.2	0.68
CTDS-07	40 × 540	70	23.5	0.38
CTDS-08	40 × 430	63	15.4	0.43
CTDS-09	50 × 600	51	17.2	0.305
CTDS-10	50 × 500	47	12	0.364
CTDS-11	65 × 600	36	12	0.32
CTDS-12	70 × 600	31	10.1	0.32
CTDS-13	78 × 760	31	13.5	0.254
CTDS-14	78 × 680	29	10.3	0.272
CTDS-15	80 × 680	28	9.8	0.272
CTDS-16	90 × 850	26	12.7	0.226
CTDS-17	90 × 760	24	9.6	0.242
CTDS-18	100 × 850	22	10	0.226
CTDS-19	130 × 1500	21	18.6	0.135
CTDS-20	100 × 760	20	7.4	0.242
CTDS-21	130 × 1200	18	12	0.161
CTDS-22	130 × 1100	17	9.4	0.171
CTDS-23	150 × 1400	15	11.4	0.143
CTDS-24	160 × 1500	15	12.4	0.135
CTDS-25	165 × 1500	14	11.4	0.135
CTDS-26	174 × 1700	13	12.9	0.127
CTDS-27	165 × 1400	13	8.8	0.143
CTDS-28	174 × 1400	11	7.4	0.143
CTDS-29	203 × 1600	10	9.3	0.114

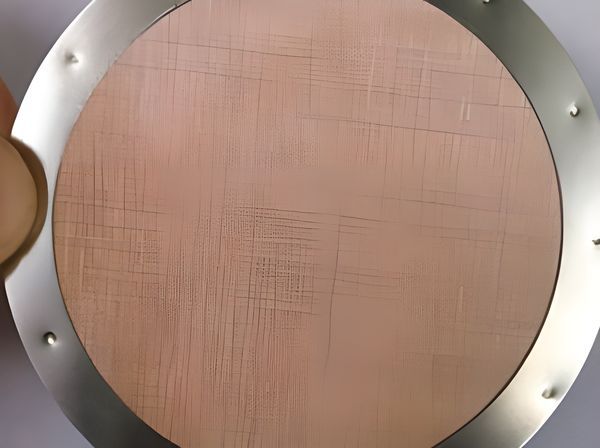

A hand is holding a piece of copper wire mesh filter disc with stainless steel edge.

CWM-07: Copper wire mesh filter disc.

A hand is holding a piece of copper wire mesh filter tube.

CWM-08: Copper wire mesh filter tube.

A man is installing the copper wire mesh filter discs into laboratory devices.

CWM-09: Copper wire mesh for laboratory filters.

A cage made of aluminum frame and copper wire mesh screens and a laboratory apparatus in it.

CWM-10: Copper wire mesh for eliminating laboratory shielding.

A villa windows are installed with copper wire mesh window screens.

CWM-11: Copper wire mesh is used as window screen.

Copper wire mesh is installed on the papermaking machine.

CWM-12: Copper wire mesh is used as printing screen.
