Plain Weave Stainless Steel Wire Mesh Cloth for Filter – Most Common Type

Plain weave stainless steel wire mesh is made of a weft wire and a warp wire with same diameter woven together. Each warp wire crosses alternately above and below every weft wire and vice versa, forming a rectangle or square opening.

With good resistance to corrosion and abrasion, stainless steel wire cloth can be made into filter in petroleum, chemical fiber, food processing, electroplating industries, etc. And it is also used for window screen or decoration.

There is a plain weave stainless steel wire mesh sheet with 14 mesh.
PWSS-01: 14 mesh plain weave stainless steel wire mesh can be made into window screen.
There is a 30 mesh plain weave stainless steel wire mesh roll.
PWSS-02: 30 mesh plain weave stainless steel wire mesh can be used for mud mesh.
There is a piece of 60 mesh plain weave stainless steel wire mesh.
PWSS-03: 60 mesh plain weave stainless steel wire mesh can be used to sieve powders.
There is a plain weave stainless steel wire fine mesh roll.
PWSS-04: Plain weave stainless steel fine cloth has high precision.

Specifications of plain weave stainless steel wire mesh:

  • Materials: stainless steel 302, 304, 304L, 310, 316, 316L, 321, 410, 410L, super duplex stainless steel, duplex stainless steel or customized.
  • Mesh patterns: square, rectangle.
  • Surface treatment: pickling and passivation, polishing.
  • Packing:
    • Rolls wrapped with craft paper and then put into carton or on pallet;
    • Sheets in wooden boxes or on pallets.
Table 1: Chemical Composition of Common Stainless Steel Wire (%)
Materials C Si Mn P S Ni Cr Mo
304 = 0.08 = 1.00 = 2.00 = 0.045 = 0.030 8.0–10.50 18.00–20.00 -
304L = 0.030 = 1.00 = 2.00 = 0.045 = 0.030 9.00–13.50 18.00–20.00 -
316 = 0.045 = 1.00 = 2.00 = 0.045 = 0.030 10.00–14.00 10.00–18.00 2.00–3.00
316L = 0.030 = 1.00 = 2.00 = 0.045 = 0.030 12.00–15.00 16.00–18.00 2.00–3.00
321 ≤ 0.07 ≤ 1.00 ≤ 2.00 ≤ 0.035 ≤ 0.030 8.00–11.00 17.00–19.00 -
Table 2: Specifications of Plain Weave Stainless Steel Wire Mesh
Mesh Wire Diameter (mm) Opening (mm) Weight (kg/m2)
1 2 23.4 2.0
2 1.5 11.2 2.25
3 1.0 7.466 1.5
4 0.9 5.45 1.62
5 0.8 4.28 1.6
6 0.7 3.53 1.47
7 0.6 3.02 1.26
8 0.5 2.675 1.0
9 0.5 2.322 1.125
10 0.8 1.74 3.2
11 0.7 1.609 2.695
12 0.6 1.516 2.16
13 0.5 1.453 1.625
14 0.4 1.414 1.12
15 0.4 1.293 1.2
16 0.35 1.237 0.98
17 0.35 1.144 1.041
18 0.35 1.061 1.10
19 0.35 0.986 1.16
20 0.4 0.97 0.97
21 0.3 0.909 0.945
22 0.3 0.854 0.99
23 0.25 0.854 0.718
24 0.25 0.858 0.48
25 0.2 0.816 0.50
26 0.2 0.076 0.52
27 0.2 0.740 0.54
28 0.3 0.607 1.26
29 0.3 0.575 1.30
30 0.3 0.546 1.35
40 0.25 0.385 1.25
50 0.2 0.308 1.0
60 0.15 0.273 0.675
70 0.14 0.222 0.686
80 0.12 0.197 0.576
90 0.11 0.172 0.544
100 0.10 0.154 0.50
120 0.08 0.131 0.384
150 0.07 0.099 0.367
380 0.02 0.046 0.076
400 0.018 0.0455 0.0648

Plain weave stainless steel wire mesh features:

  • The most common type;
  • Good resistance to acid and alkali, and corrosion;
  • Abrasion, high temperature resistant;
  • Durable and high strength;
  • Easy to clean and maintain;
  • Flat and shiny surface.

Plain weave stainless steel wire mesh applications:

  • Used for filter or sieve in mining, chemical fiber, pharmaceutical industries, such as mud mesh, pickling mesh;
  • Made into window screen, fruit basket, infill panel, etc.
There is a filter element made of two layers of stainless steel wire mesh with different density.
PWSS-05: Plain weave stainless steel wire mesh filter element has good resistance to acid and alkali corrosion.

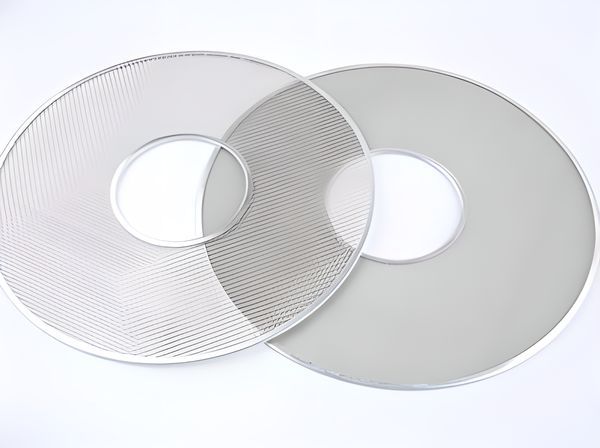

There are two stainless steel wire mesh ring filter discs with different meshes.
PWSS-06: Plain weave stainless steel wire mesh can be used for ring filter disc in various industries.
There are two stainless steel filter discs from single layer stainless steel mesh.
PWSS-07: Single layer stainless steel mesh filter discs.
There are five stainless steel filter discs from multilayer stainless steel mesh cloth.
PWSS-08: Multilayer stainless steel mesh filter discs.
There are six stainless steel filter discs from single layer stainless steel mesh.
PWSS-09: Stainless steel mesh filter discs.
There are nine stainless steel filter tubes.
PWSS-10: Stainless steel mesh filter tubes.
Plain weave stainless steel wire meshes are installed on the widow frame.
PWSS-11: Plain weave stainless steel window screen is durable and well ventilated.
There are two fruit baskets made of plain weave ss wire mesh with many fruits in one.
PWSS-12: Plain weave stainless steel wire mesh fruit basket has flat and beautiful appearance.
