Cone Filter with Dirt-Holding ability for Pipeline

A sketch map of cone filter disc with inside diameter and outside diameter.

A sketch map of cone filter disc.

Cone filter, also known as temporary filter, is a type of cone shaped filter element. Generally, it belongs to the cylinder filter series. And compared with cylinder filter and tube filter, its bottom is often cone-shaped. According to bottom's shape, it can be classified into sharp bottom cone filter disc, flat bottom cone filter disc. According to the way of mesh formation, it can be classified into woven type and perforated type. Among these specific products, the perforated cone filter is the most popular. Cone filter belongs to the coarse filter series of pipeline. Generally, it is applied to remove the impurities in the pipeline to make the pipeline work and operate normally. And the working principle of cone filter is that fluid enters the cone filter, then impurities are blocked, and finally the clean fluid flow out of the outlet.

Specification

  • Filter materials: stainless steel, carbon steel, phosphor bronze, aluminum, etc.
  • Weaving types: plain weave, twill weave, dutch weave, etc.
  • Layers: single layer or multiple layers.
  • Filter shape: sharp bottom cone shape, flat bottom cone shape.
  • Marginal materials: stainless steel, aluminum, copper, rubber, etc.
  • Filtration precision: 1 μm - 200 μm.

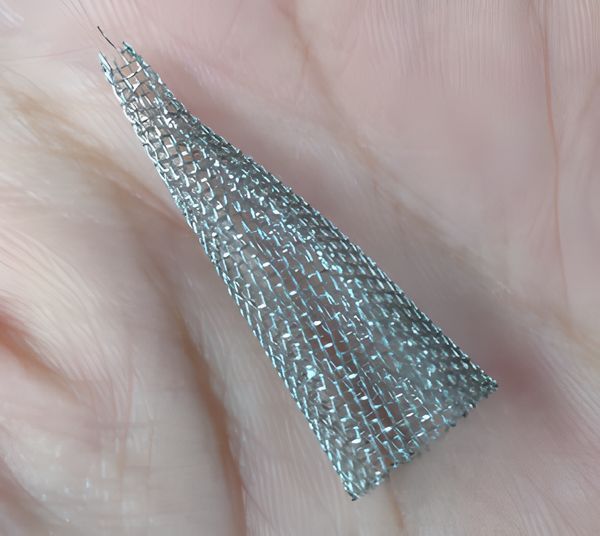

A hand holds a small cone filter.

COF-1: Cone filter with different sizes can be produced according to your specific requirements.

Two fingers hold a big cone filter.

COF-2: Cone filter is suitable for cutting, bending, stamping, drawing, welding and other processes.

A perforated sharp bottom cone filter with stainless steel handle.

COF-3: Sharp bottom cone filter.

A perforated flat bottom cone filter with stainless steel handle.

COF-4: Flat bottom cone filter.

A woven cone filter with stainless steel edge.

COF-5: Woven cone filter.

A perforated cone filter with stainless steel edge.

COF-6: Perforated cone filter.

A stainless steel flat bottom cone filter with copper edge.

COF-7: Cone filter with copper edge.

A stainless steel flat bottom cone filter with stainless steel wrapping edge.

COF-8: Cone filter with stainless steel edge.

Features

  • High filtration speed.
  • Large dirt-holding capacity.
  • Withstand high temperature.
  • High mechanical strength.
  • Anti-corrosion and anti-abrasion with excellent durability.
  • Uniform meshes and smooth surface.
  • Firm and stable structure.
  • Easy processing: suitable for cutting, bending, stamping, drawing, welding and other processes.
  • Low rate of backwash water consumption.
A cone filter with rubber edge is beside a metal coin.

COF-9: Cone filter with rubber edge.

A cone filter with the sharp bottom facing up is beside a metal coin.

COF-10: Cone filter with smooth surface.

Applications

  • Chemical industry: caustic soda, sulfuric acid, carbonic acid, acetic acid, etc.
  • Petrochemical industry: water, oil, ammonia, etc.
  • Cryogenic material in refrigeration: liquid methane, liquid ammonia, liquid oxygen, etc.
  • Food and pharmacy process: beer, beverage, dairy products, medicine, etc.
  • Other fields: cone coffee filter, cone air filter, pipeline cone filter, etc.
