Stainless Steel Filter Disc with Corrosion Resistance

Stainless steel filter disc, also called stainless steel wire mesh filter disc, is one type of the metal filter discs. We classify the manufacture process into three steps. First, we choose high quality stainless steel wire. Second, stainless steel wire would be weaved or punched. Then, according to customers' special requirements, we will select different material to wrap the edge. What's more, in the manufacture process, we can provide stainless steel filter discs with different sizes, different shapes and different weaving methods. All can be produced according to your specific requirements. Stainless steel filter disc features excellent acid and alkali resistance and can be used in very harsh conditions, especially suitable for sour gas filtration.

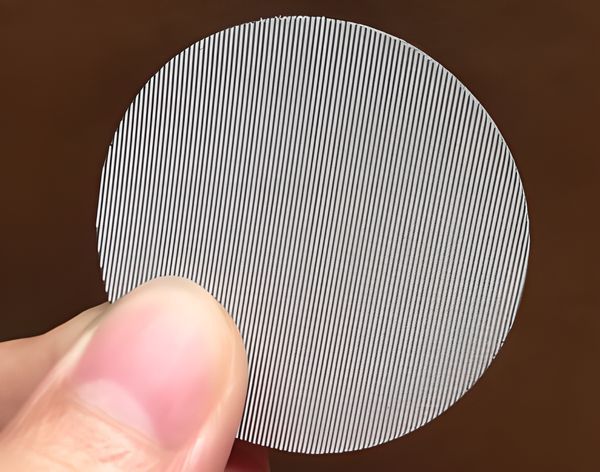

Two fingers pinch a dutch weave type filter disc.

SSFD-1: Dutch weave stainless steel filter disc.

Two fingers pinch a plain weave type filter disc.

SSFD-2: Plain weave stainless steel filter disc.

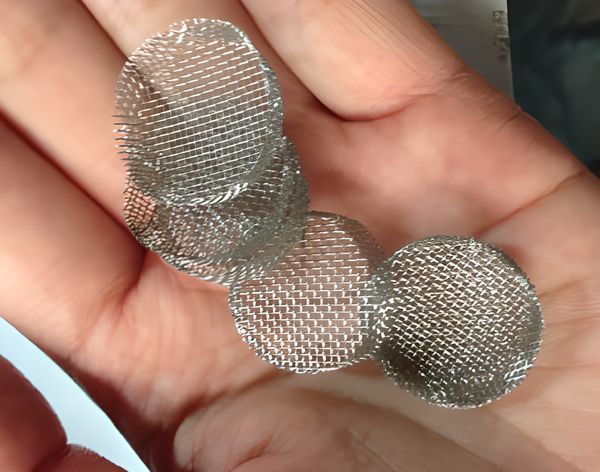

A hand holds four stainless steel filter disc without wrapping edge.

SSFD-3: Stainless steel filter disc can be produced with or without wrapping edge.

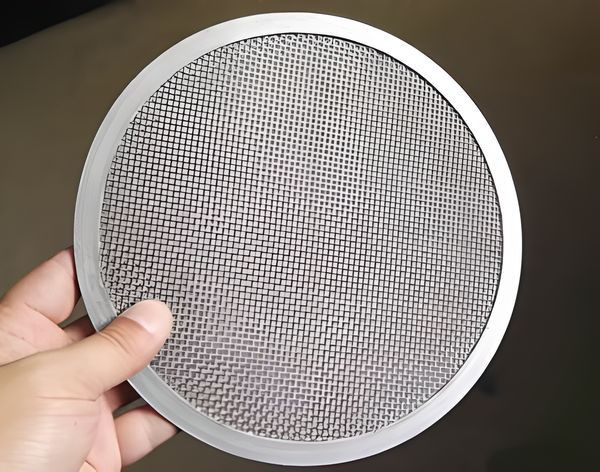

Five fingers pinch a stainless steel with wrapping edge.

SSFD-4: The wrapping edge material: copper, aluminum, stainless steel, rubber, etc.

Nine woven filter discs are placed together.

SSFD-5: The weaving type of filer disc: plain weave, twill weave, dutch weave, etc.

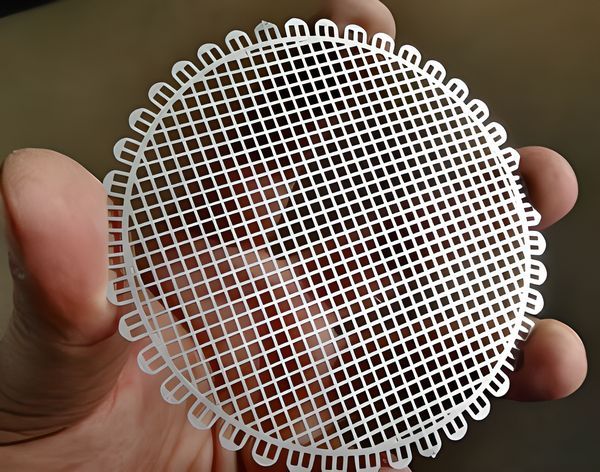

Five fingers pinch a perforated filter disc.

SSFD-6: Perforated stainless steel filter disc can be produced with round, square, rectangular hole patterns.

Stainless steel 316 filter disc mesh with 0.75 mm wire diameter and 11 mesh.

SSFD-7:Stainless steel 316 filter disc can be used for extruder screen, wire diameter 0.75 mm, 11 mesh, disc diameter 59 mm.

Specifications

  • Wire materials: SUS302, SUS304, SUS304L, SUS310S, SUS316, SUS316L, SUS321, etc.
  • Wire diameters: 0.01 mm - 5 mm.
  • Disc diameters: 5 mm - 600 mm (custom size: 8 mm - 3800 mm).
  • Weaving methods: plain weave, twill weave, dutch weave, etc.
  • Layer: single layer or multiple layers.
  • Filter disc shapes: round, rectangular, square, crescent and semicircle, etc.
  • Marginal materials: copper, aluminum, stainless steel, rubber, etc.
  • Filtration precision: 0.2 µm - 100 µm.
Three stainless steel filter discs with one layer.

SSFD-8: Stainless steel filter disc can be produced with different layers.

Two stainless steel filter discs with multiple layers.

SSFD-9: Stainless steel filter disc can be produced with different layers according to your specific requirements.

Five round stainless steel filter discs with different sizes.

SSFD-10: Filter disc' sizes can be produced according to your specific requirements.

Nine stainless steel filter discs with different shapes.

SSFD-11: The shape of stainless steel filter disc: round, square, rectangular, ring, abnormal shape, etc.

Stainless steel wire mesh: plain weave specification
Items Mesh Wire Diameter (mm) Aperture (mm) Material (AISI)
SSPW01 7 × 7 1.00 2.63 SUS304 SUS316
SSPW02 10 × 10 0.60 1.94
SSPW03 12 × 12 0.50 1.62
SSPW04 16 × 16 0.40 1.19
SSPW05 16 × 16 0.35 1.24
SSPW06 18 × 18 0.35 1.06
SSPW07 20 × 20 0.40 0.87
SSPW08 24 × 24 0.26 0.80
SSPW09 30 × 30 0.30 0.55
SSPW10 35 × 35 0.17 0.56
SSPW11 40 × 40 0.23 0.40
SSPW12 50 × 50 0.20 0.31
SSPW13 60 × 60 0.15 0.27
SSPW14 70 × 70 0.12 0.24
SSPW15 80 × 80 0.13 0.19
SSPW16 90 × 90 0.12 0.16
SSPW17 100 × 100 0.10 0.15
SSPW18 120 × 120 0.09 0.12
SSPW19 150 × 150 0.063 0.11
SSPW20 180 × 180 0.053 0.09
SSPW21 200 × 200 0.053 0.07
Stainless steel wire mesh: twill weave specification
Items Mesh Wire Diameter. (mm) Aperture (mm) Material (AISI)
SSTW01 250 × 250 0.040 0.063 SUS316
SSTW02 300 × 300 0.040 0.044
SSTW03 325 × 325 0.035 0.043 SUS316L
SSTW04 350 × 350 0.030 0.042
SSTW05 400 × 400 0.030 0.033
SSTW06 450 × 450 0.028 0.028
SSTW07 500 × 500 0.025 0.026
Stainless steel wire mesh: dutch weave specification
Items Mesh Wire Diameter (mm) Material (AISI)
SSDW01 12 × 64 0.58 × 0.40 SUS304 or SUS316
SSDW02 24 × 110 0.36 × 0.25
SSDW03 14 × 88 0.50 × 0.33
SSDW04 30 × 150 0.23 × 0.18
SSDW05 40 × 200 0.18 × 0.13
SSDW06 50 × 250 0.14 × 0.11
SSDW07 80 × 700 0.10 × 0.08
SSDW08 165 × 800 0.071 × 0.040
SSDW09 165 × 1400 0.06 × 0.04
SSDW10 200 × 1800 0.05 × 0.032
SSDW11 825 × 2300 0.035 × 0.025 SUS316L
SSDW12 400 × 2800 0.030 × 0.02

Features

  • Physical properties: high tensile force, high dirt holding capacity, high strength, high pressure resistance, accurate filtration rating, abrasion resistance, good wear resistance, high temperature resistance.
  • Chemical properties: acid, alkali and corrosion resistance.
  • Process properties: uniform controlled porosity, long service life, precision punched burr-free, compatible with most fluids, weldable, easy loading and unloading, cleanable and reusable, etc.
A ultra fine wire woven stainless steel is beside a metal coin.

SSFD-12: Filter disc can be made of ultra fine stainless steel wire.

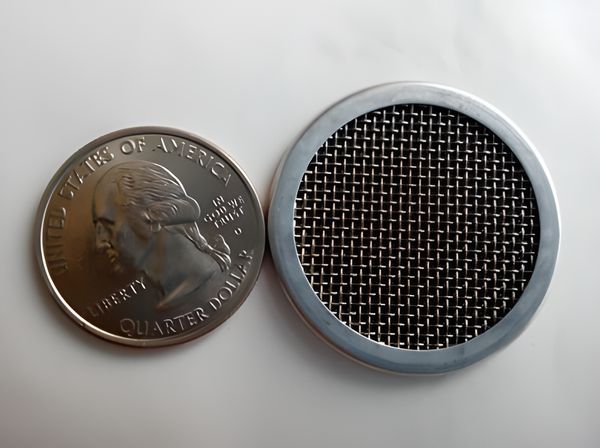

A multi-layer filter disc with wrapping edge is beside a metal coin.

SSFD-13: Filter disc with multi-layer features high dirt holding capacity.

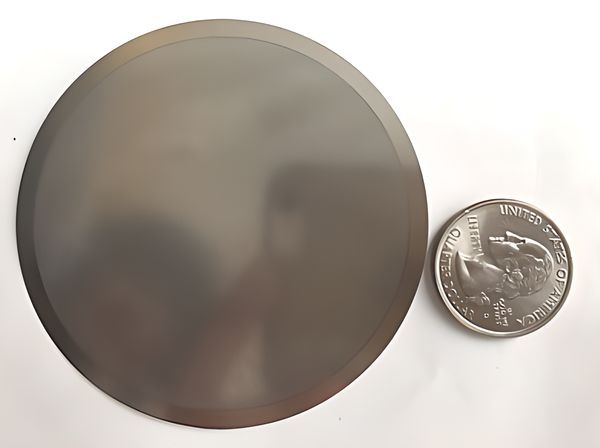

A round filter disc with shiny and smooth surface is beside a metal coin.

SSFD-14: Filter disc with smooth surface.

A hand is touching a translucent filter disc.

SSFD-15: The thickness of filter disc can be customized.

A round stainless steel filter disc with red painting edge is beside a metal coin.

SSFD-16: Stainless steel filter disc with red painting edge.

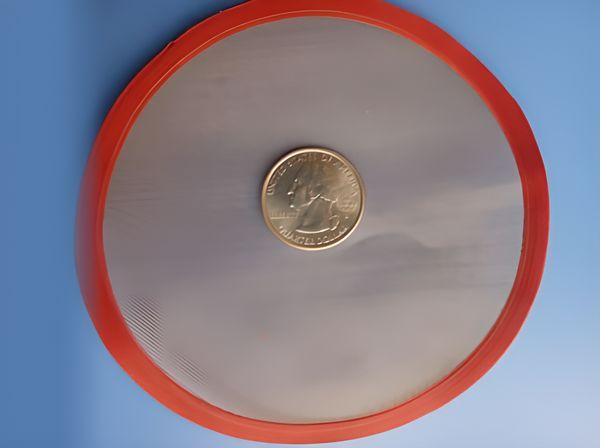

A round stainless steel filter disc with red painting edge is under a metal coin.

SSFD-17: The disc diameter can be customized.

Two pieces of stainless steel filter discs in rectangular shape with a metal coin in the middle.

SSFD-18: Rectangular stainless steel filter disc with wrapping edge.

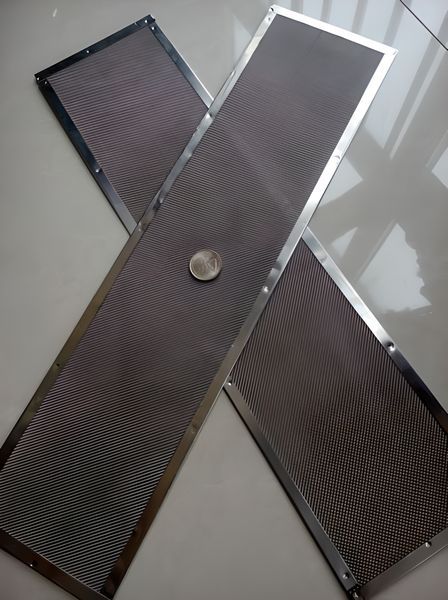

Two pieces of stainless steel filter disc in rectangular shape are crossed together with a metal coin in the middle.

SSFD-19: The shape of stainless steel filter disc can be customized.

Applications
Stainless steel filter discs with high acid and alkali resistance can be used in very hash conditions.

  • Water filtration: sewage water treatment and distribution, etc.
  • Gas filtration: aerospace hydraulic, high temperature gas, gas distribution system, etc.
  • Petroleum industry: oil sands separation, lubricating oil, hydraulic start oil filter, etc.
  • Metallurgy: acid cleaning mesh in electric plating industry, etc.
  • Other fields: high pressure filter medium, chemical industry, pharmacy, machinery, dust removal, fluidized, etc.
