Home > Products > Filter Disc Series > Black Wire Cloth Filter Disc

Black Wire Cloth Filter Disc with Uniform Holes

Black wire cloth filter disc, also named iron wire mesh filter disc or black wire mesh filter disc, is one type of the metal  filter discs. Black wire cloth filter disc is made of low carbon steel and its weaving type includes plain weave, twill weave and dutch weave. With superior quality, black wire mesh filter discs are widely used in rubber industry, plastic industry, oil industry, grain industry, etc.

Specification

  • Filter material: low carbon steel.
  • Wire diameters: 0.12 - 0.60 mm.
  • Discs diameters: 10 mm - 580 mm.
  • Disc shapes: round, ring, rectangular, oval, crescent, semicircle, etc.
  • Weaving types: plain weave, twill weave, dutch weave, etc.
  • Filter disc layer: single layer or multiple layers.
  • Marginal materials: copper, aluminum, stainless steel, rubber, etc.
A round twill weave black wire cloth filter disc.

BFD-1: Twill weave black wire cloth filter disc.

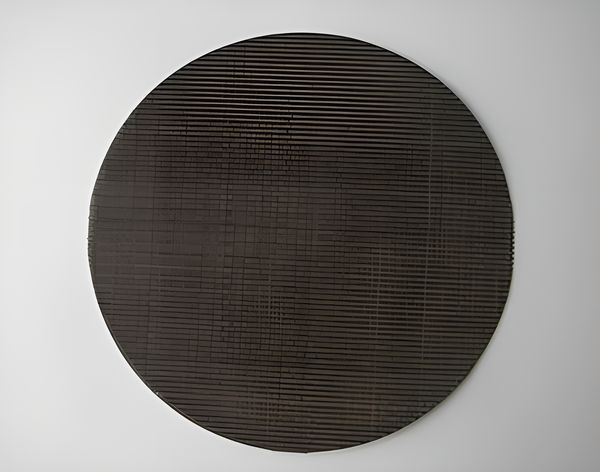

A round dutch weave black wire cloth filter disc.

BFD-2: Dutch weave black wire cloth filter disc.

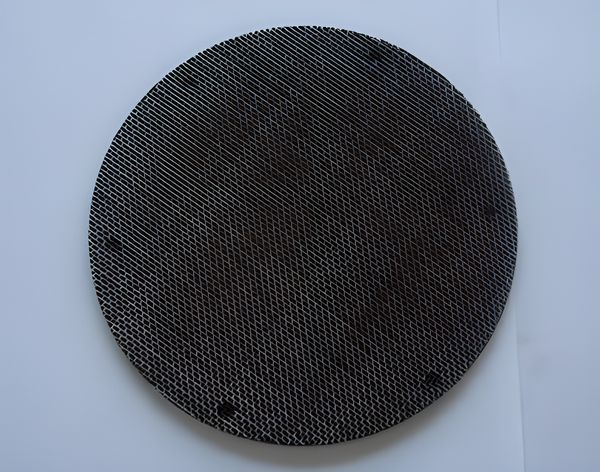

A round black wire cloth filter disc with spot welding.

BFD-3: Spot welding edge black wire cloth filter disc.

A hand holds a round black wire cloth filter disc with stainless steel wrapping edge.

BFD-4: Wrapping edge black wire cloth filter disc.

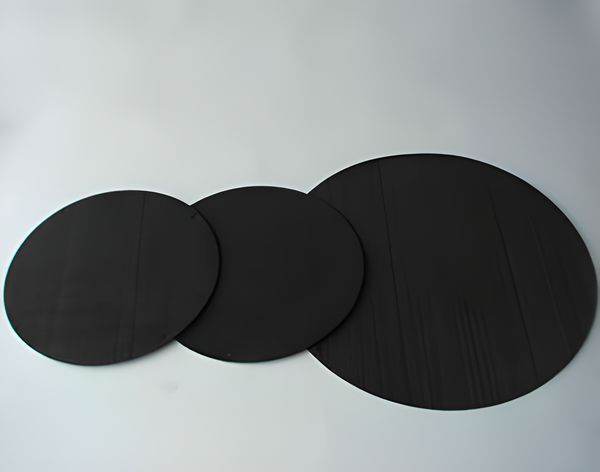

Three black wire cloth filter disc with different diameters.

BFD-5: Black wire cloth filter disc can be produced with different sizes.

An abnormal black wire cloth filter with spot welding.

BFD-6: The shape of black wire cloth filter disc: round, ring, rectangular, oval, crescent, semicircle, etc.

Specification of 3' × 100' black wire cloth
Item Mesh Wire diameter (mm) Mesh weight (kg)
BWCFD01 18 × 18 0.45 50.8
BWCFD02 20 × 20 0.35 34.1
BWCFD03 22 × 22 0.30 27
BWCFD04 24 × 24 0.33 36.4
BWCFD05 26 × 26 0.33 39.4
BWCFD06 28 × 28 0.30 35.1
BWCFD07 30 × 30 0.30 37.6
BWCFD08 32 × 32 0.20 17.8
BWCFD09 34 × 34 0.22 22.9
BWCFD10 36 × 36 0.22 24.2
BWCFD11 38 × 38 0.22 25.6
BWCFD12 40 × 40 0.20 22.3
BWCFD13 42 × 42 0.17 16.9
BWCFD14 44 × 44 0.17 17.7
BWCFD15 46 × 46 0.17 18.5
BWCFD16 48 × 48 0.17 19.3
BWCFD17 50 × 50 0.17 20.1
BWCFD18 56 × 56 0.17 22.5
BWCFD19 60 × 60 0.17 24.2

Features

  • Withstand high temperature and harsh conditions.
  • Uniform mesh holes.
  • Neat and flat mesh surface.
  • Long service life.

Applications
Black wire cloth filter discs,  the same as stainless steel filter discs and sintered filter discs, are mainly used in chemical industry, medicine, machinery, metallurgy, plastic industry, rubber industry, industrial filtration, petroleum filtration, grain industry filtration, etc.
